Haag Panel & Membrane Gauge

Haag thickness open 2017.jpg
Haag thickness 2017.jpg
Haag thickness open 2017.jpg
Haag thickness 2017.jpg

Haag Panel & Membrane Gauge

54.99
  • Estimates panel and membrane thickness
  • Steel/Aluminum panels
  • Single-ply membranes
  • Includes built-in rare earth magnet



Quantity:
Add To Cart

OTHER GAUGES estimate only uncoated steel panels...  The Haag Panel & Membrane Gauge™ is different.  Using published industry standards, Haag's Research/Testing Division found the measurable differences between coatings in order to bring you a unique new tool that fills a void in the industry.  The Haag Panel & Membrane Gauge™ will help you suggest replacement panels on more roofing types, with more accuracy.  It may be used to estimate the thickness of both steel and aluminum panels, as well as single-ply membranes:

  • For Steel: uncoated or coated, galvanized or Galvalume® (with or without additional coating)
  • For Aluminum: uncoated and anodized panels
  • For Single-ply:  all single-ply membranes (excluding modified bitumen, self-adhering, and fleece-backed)
 Rare earth magnet included

Rare earth magnet included

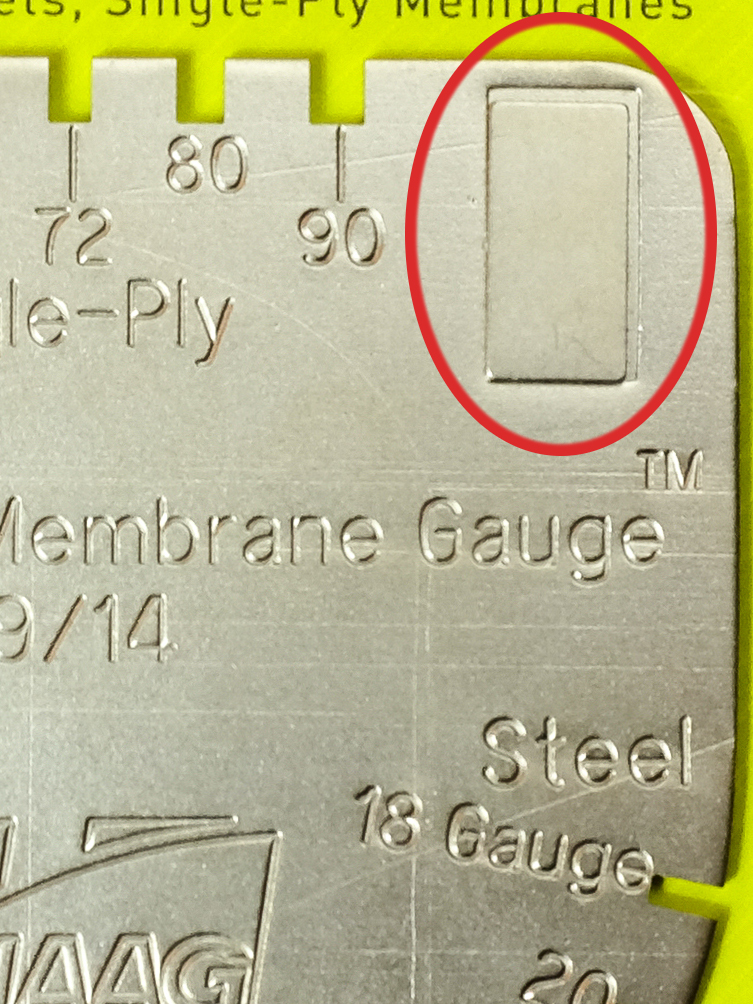

BONUS Magnet...   Sometimes it's difficult to determine if you are looking an aluminum or steel panel.  The Haag Panel & Membrane Gauge™ includes a rare earth magnet that will help you differentiate these panel types from each other.  In general, if the panel is made of steel, the magnet will react.  If the panel is made of aluminum, the magnet will NOT react.  (Some stainless steels also are not magnetic and will not react.)

EASY To Use...  Follow these easy steps to estimate:

  1. Identify the type of material you are inspecting. (Use the magnet to help you determine if you are looking at aluminum or steel.)
  2. Start with the widest slot. Holding the gauge loosely in one hand at a 30 degree angle to the material, drag the slot along the edge of the panel or membrane.  Note that the slightest burr (rough edge on the material after cut) will misrepresent thickness. Do not force the gauge onto the material.
  3. When dragging the tool, the slightest resistance constitutes refusal. The slot prior to refusal is the estimated panel thickness.
  4. Take multiple measurements to qualify your results. Record all findings.

See Video... for a demonstration of how to hold the gauge and drag it along a steel panel.

Note that in the video, we’ve begun our testing with the widest steel slot.  Note also that we repeat the dragging between gauges 24 and 26, testing resistance.  The slightest resistance constitutes refusal.  The slot prior to refusal is the estimate.
