Distagage D810 Disto Touch

D810 touch.png
806648-2 (1).jpg
D810 touch.png
806648-2 (1).jpg

Distagage D810 Disto Touch

from 849.00

Available individually or as part of the full tripod kit.

Kit includes a D810 disto, FTA360 tripod adapter, TRI 70 tripod, and a custom hard case - a combined retail value over $1150.

Model:
Quantity:
Add To Cart

The Leica Disto D810 touch

World’s first: The Leica DISTO™ D810 touch is the first laser distance meter with a touch screen, allowing for quick and intuitive operation. Another revolutionary feature allows for measurements with pictures. The integrated camera allows the user to capture images and download them to a computer via a USB interface. And with Bluetooth Smart data transfer, you can send the measured dimensions directly to the cursor position on Apple, Android, and Windows devices.

Features:

  • Bluetooth Smart data transfer to the cursor position

  • Touchscreen

  • Pointfinder with 4x zoom and overview camera

  • Camera function with USB download

  • Measure with a picture

  • Precise 360° tilt sensor

  • Smart Horizontal Mode™

  • Height tracking

  • Bluetooth® Smart

  • Free App – Leica DISTO™ sketch

  • Li-Ion battery

Disto D810 Hardhat 467 x 467.png

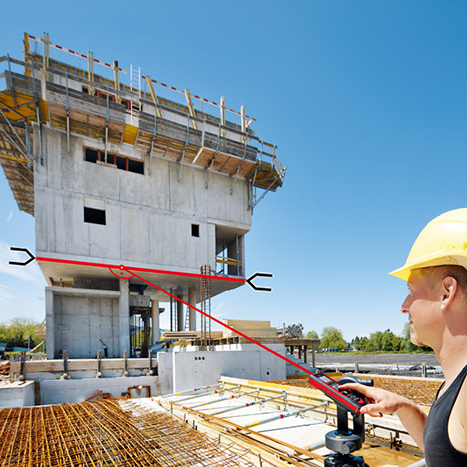

Measure with a picture

It has never been easier to determine the width, height, area or even the diameter of an object.

Take one measurement at a right angle to the object. Themeasured value appears in the display.

Then move the two arrows on the touchscreen to determine the dimension between them.


Document using pictures

The camera function on the Leica DISTO™ D810 touch can be used to create pictures or screen shots, which can then be downloaded to a computer via USB interface.

In keypad mode using Bluetooth® smart, you can link your Leica DISTO™ D810 touch to your Windows computer or iOS device and send measured values in the form of a keyboard entry to any program.

Disto D810 photo computer 467.jpg


A touch screen - Simple!

The Leica DISTO™ D810 touch is equipped with a large touch screen for quick and intuitive operation.
Common gestures used on smartphones, such as swipe, and zoom with two fingers can be used, making all functions simple and easily accessible. Measurements can also be taken using the touch screen. This avoids unintentionally moving the device during the measurements.

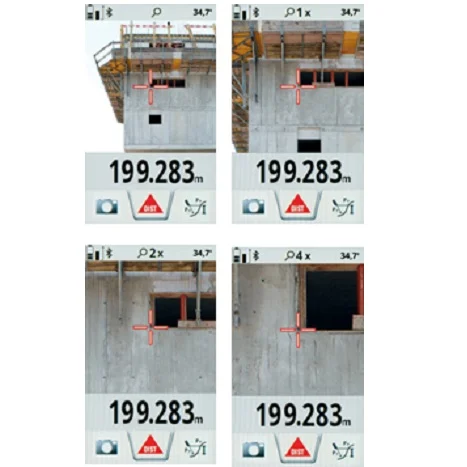

Simple and Precise Targeting

With the integrated digital Pointfinder, the Leica DISTO™ D810 touch easily and accurately takes measurements in unfavorable light conditions. The overview camera provides excellent overview or the measurement target, in a second step the target can be zoomed in four stages with the 1x, 2x and 4x zoom. Even when laser point is not visible to the naked eye, the target can be seen on the large, high resolution display of the Leica DISTO™ D810 touch.

Disto D810 touch zoom targeting.jpg


We set the standard

The range and accuracy of laser distance meters vary based on lighting conditions and the reflectivity of the measuring target.

Leica Geosystems designs instruments to perform not only under perfect laboratory conditions, but also under the kind of working conditions our customers see every day.

This is why, working together with other experts in the field, Leica has worked to develop ISO16331-1, a standard by which laser distance meters can be tested and compared to each other. The Disto E7500i has been tested in accordance with this standard.
